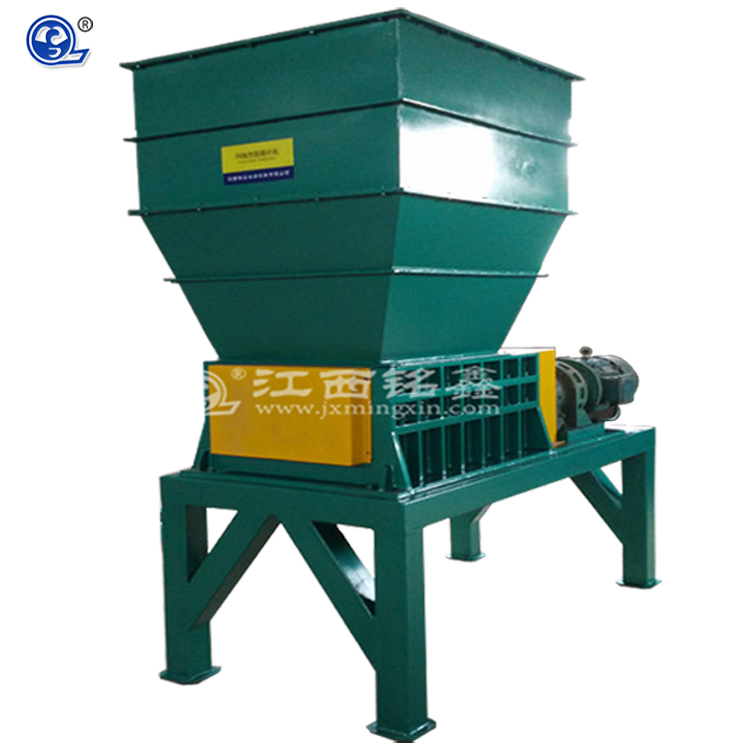

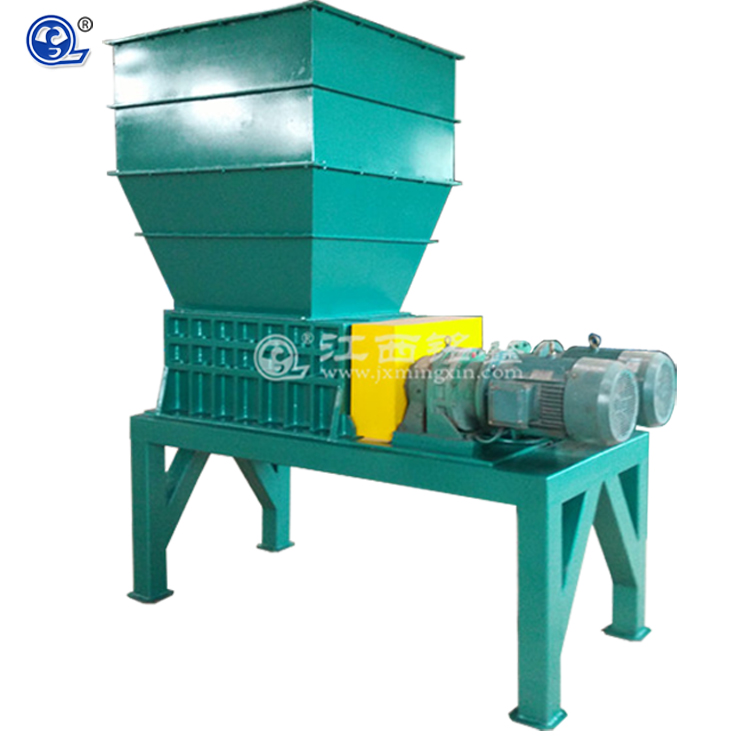

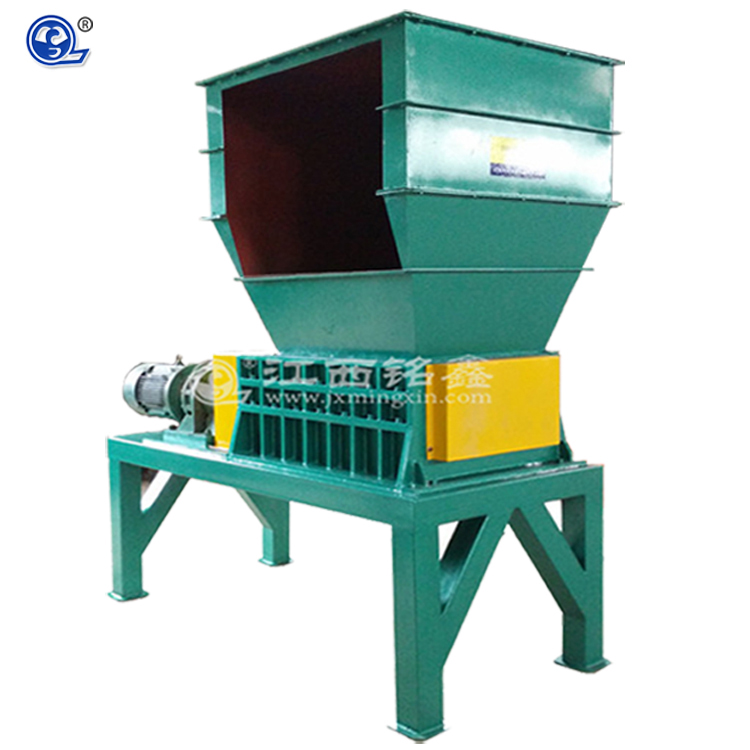

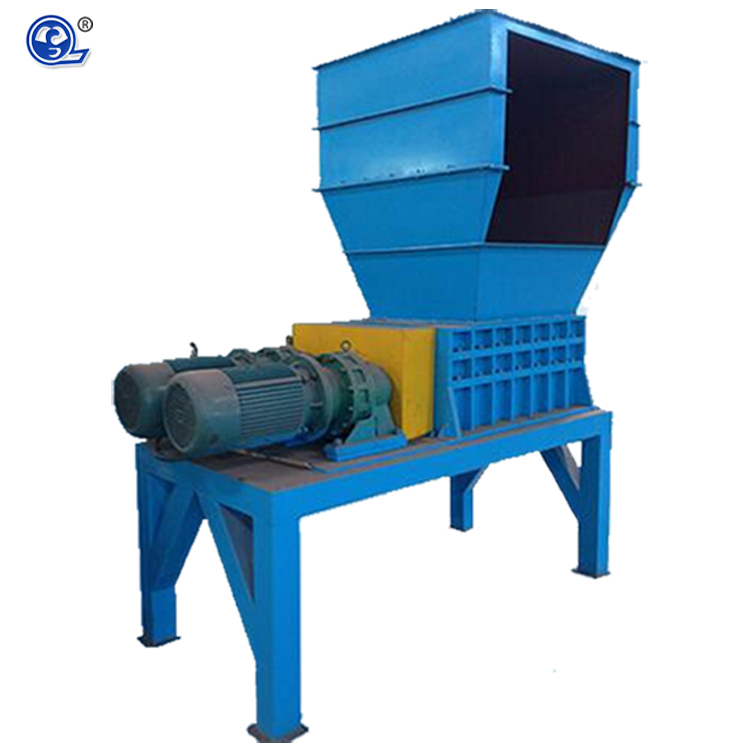

As one of our popular styles of waste recycling machines, the four shaft shredder is driven by planet gear speed reducers, using alloy steel blades with high intension and anti-wear characters. The four shafts in the shredding machine rotate at different speeds and have tearing, extrusion and bite functions.
The electric part of the four shaft shredder is controlled by Siemens PLC components, which can automatically detect the overloading and then initiate the overload protection function. The crushed flakes' size is even and adjustable.
Integrating functions of industrial metal shredders, industrial plastic shredders, and more, the four shaft shredder is fit for shredding large and hard objects such as car, waste tire, waste electronic parts, plastic pail, plastic frame, plastic bottle, metal can, metal pail, intertexture bag, fridge, electric circuit board, paper box and so on.
SPECIFICATION
| Model | MX-800 | MX-900 | MX-1200 |
| Motor Power | 2*11 Kw | 2*22 Kw | 2*30 Kw |
Shock Load Protection
| Yes | Yes
| Yes
|
Blade Thickness
| 40 mm | 40 mm
| 40 mm
|
| Blade Diameter | 300 mm | 300 mm
| 300 mm
|
| Blade Material | 6CrW2Si
| 6CrW2Si
| 6CrW2Si
|
Machine Dimension
| 2450×1100×2550 mm
| 2850×1450×2800 mm
| 3200×1295×4105 mm
|
Hopper Opening
| 1050×750 mm
| 1025×900 mm
| 1485*1065 mm
|
| Weight | 2250 Kg | 2500 Kg | 8500 Kg |
MINGXIN RECYCLING design and manufacture various shredders and recycling machines, with custom recycling lines and solutions for processing plastic film, PET bottles, rubber tire, scrap metal, municipal solid waste, medical, chemical and industrial waste, etc.
