DESCRIPTION

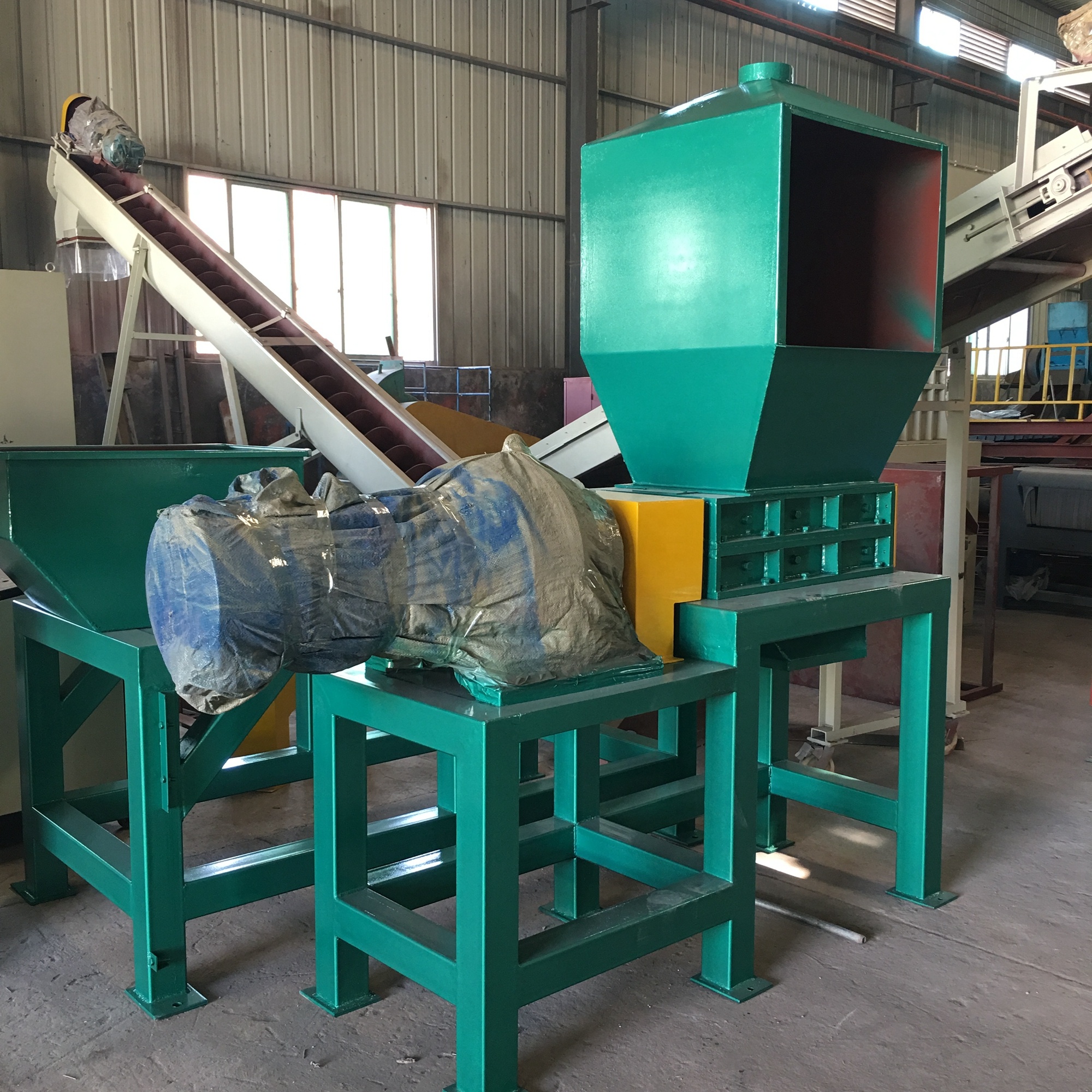

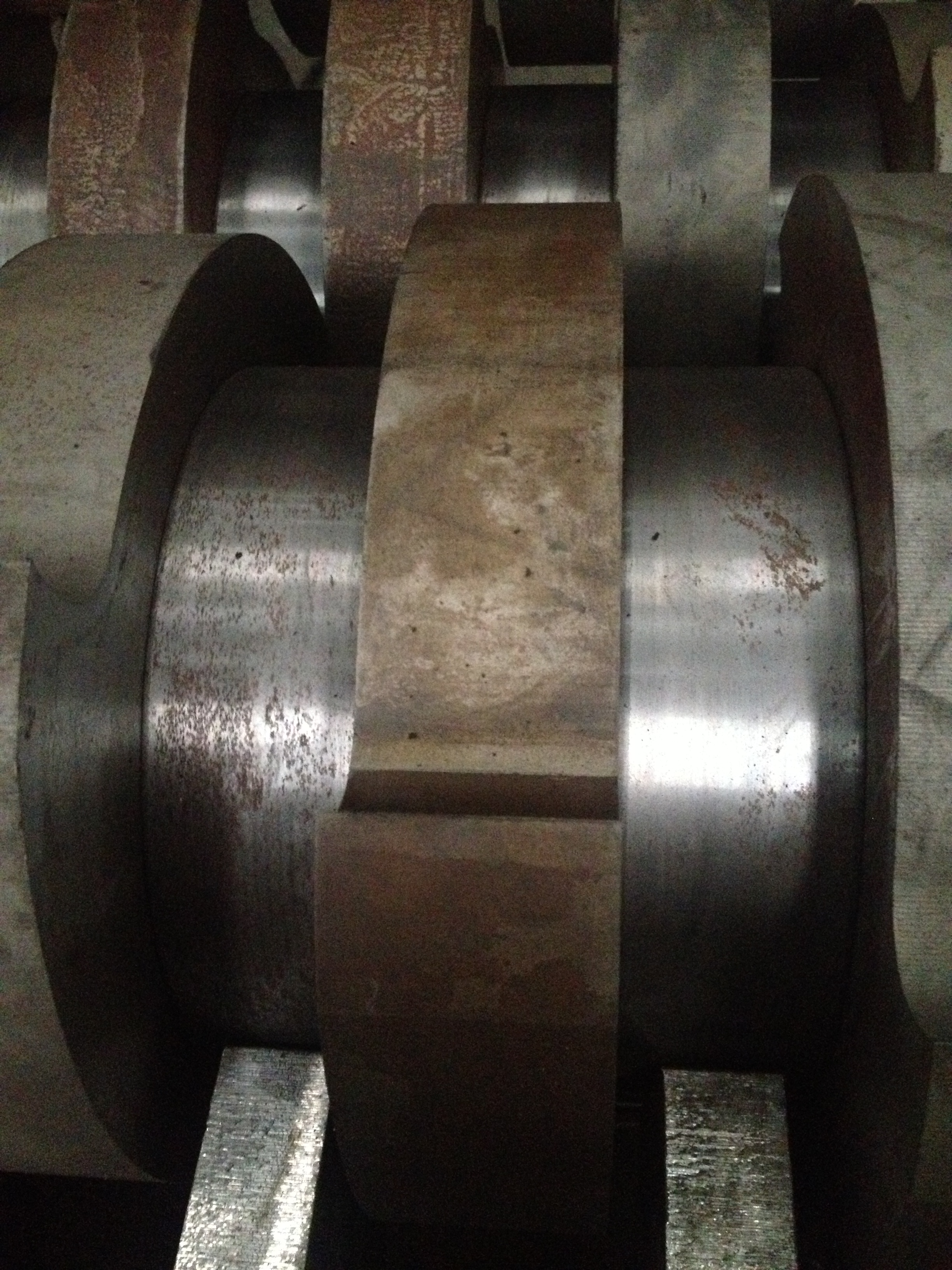

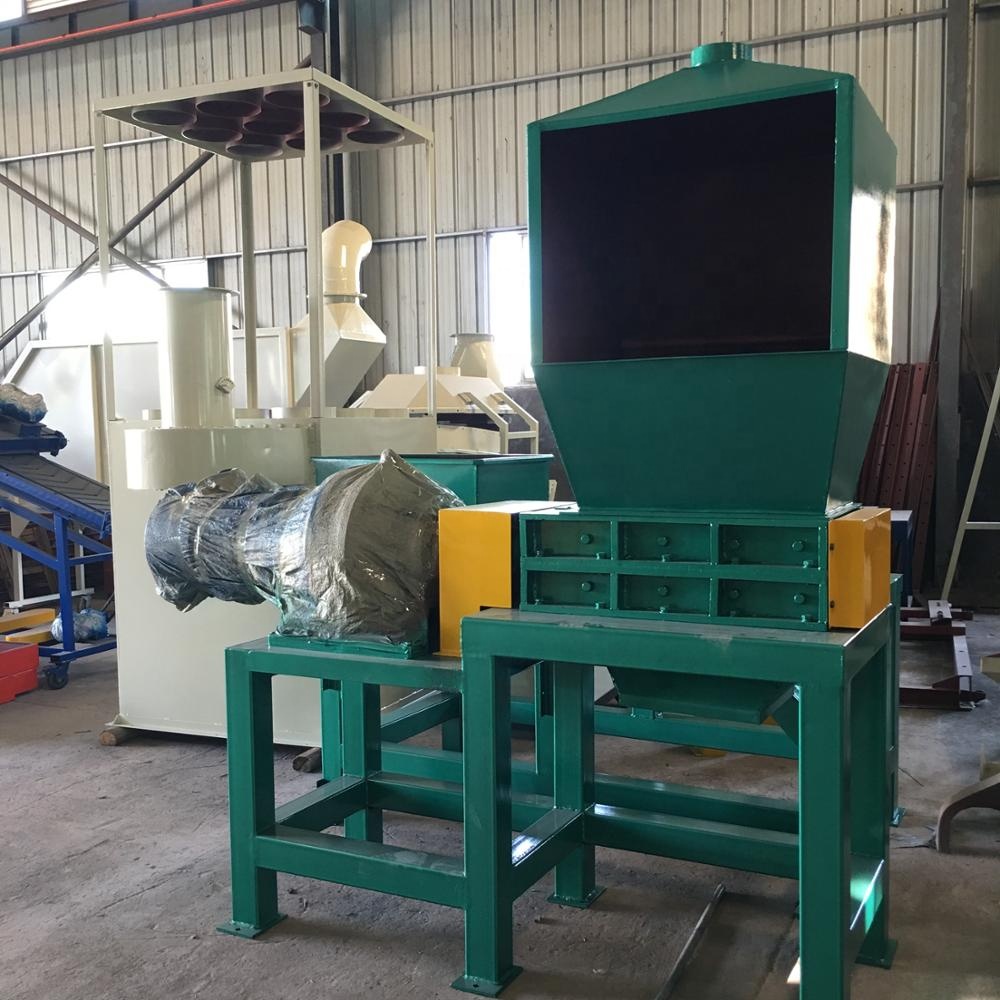

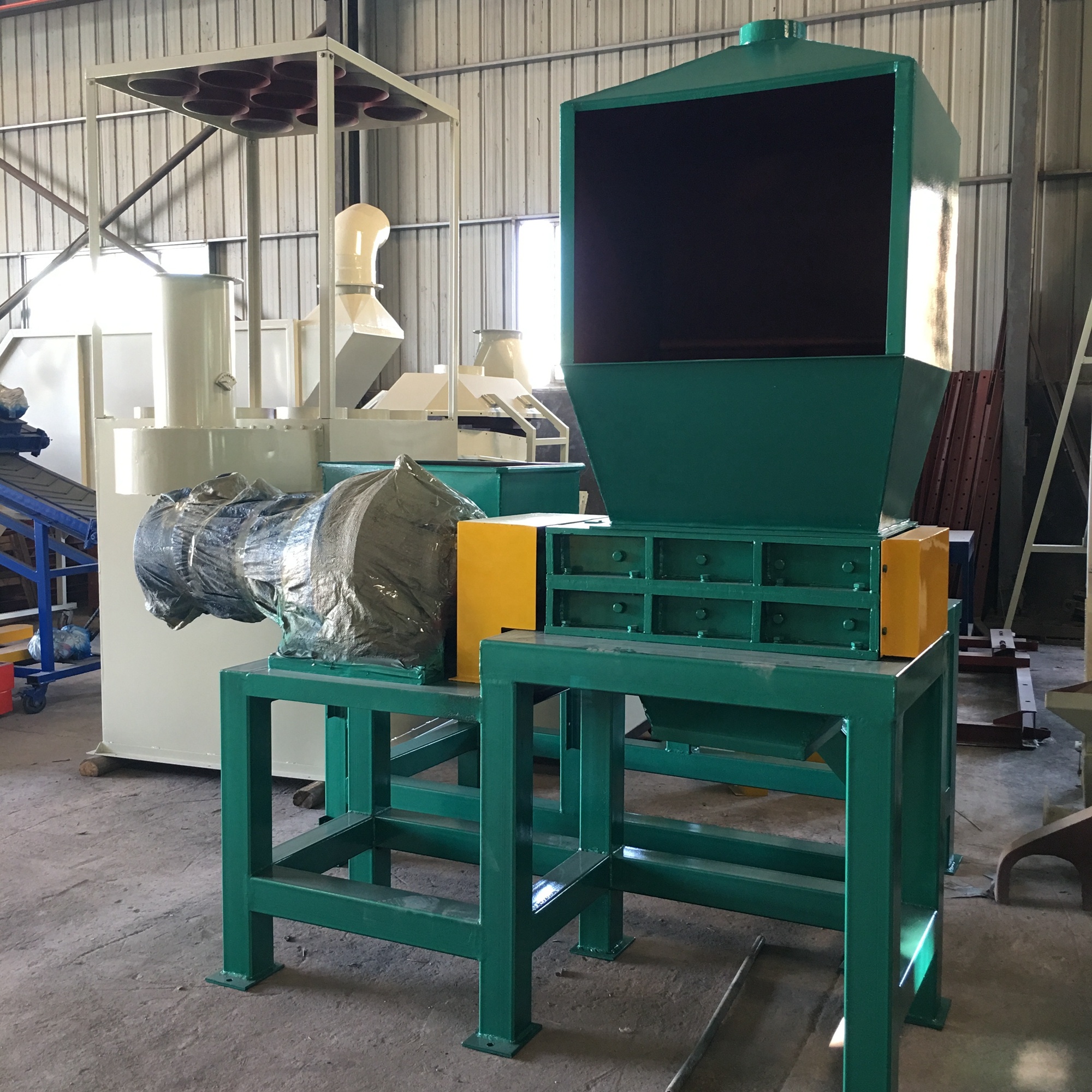

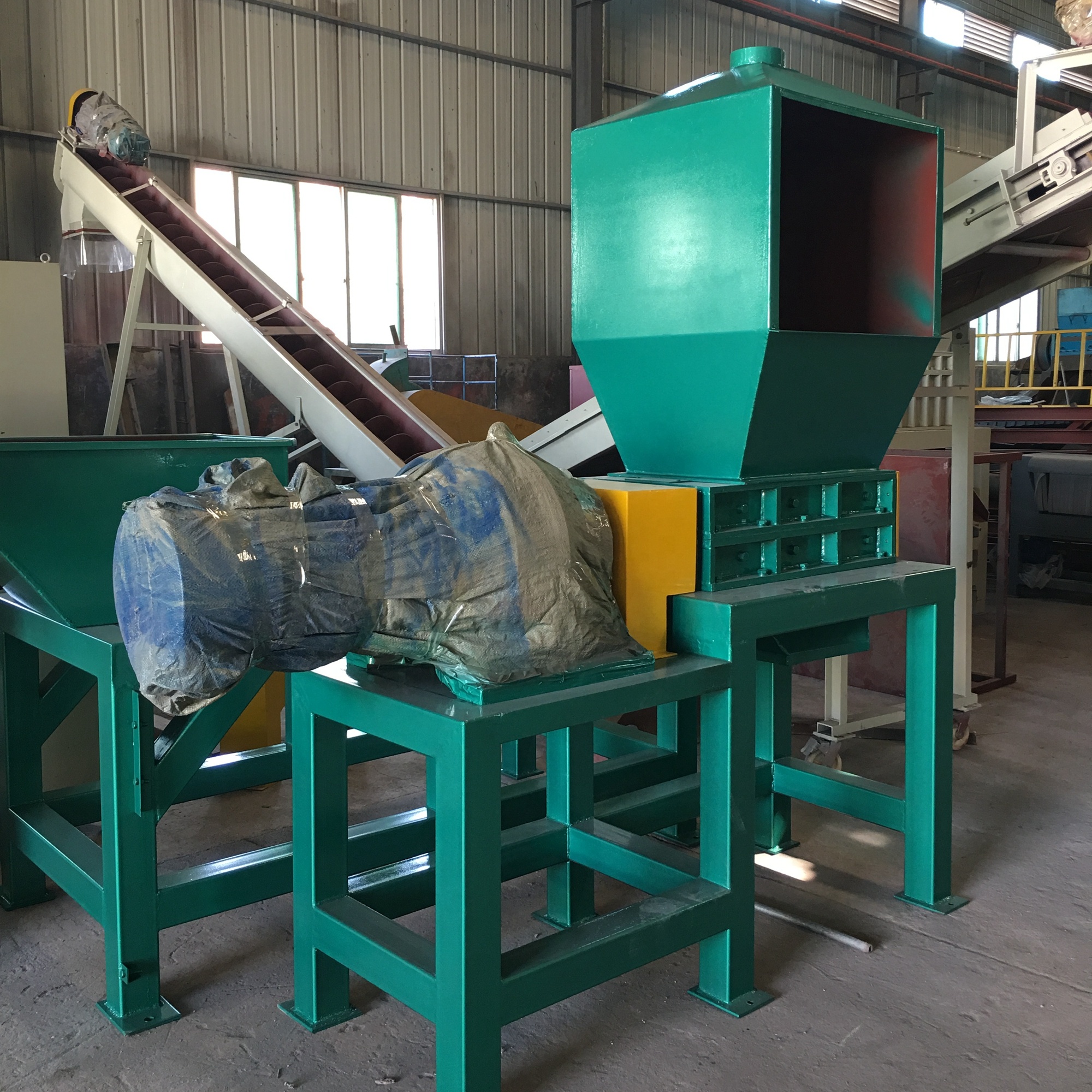

Twin-Shaft Shredder is a slow running high torque twin shaft crusher. The material enters the interior of the box through the feeding system and is collected by two rotor shafts carried on the box, which rotate alternately inward or outward to each other. Each shaft is equipped with a row of special geometry shredding blades. The material is shredded into small pieces by the combined action of shearing, squeezing and tearing of the shredding blades, and discharged from the lower part of the box.
APPLICATION
SPECIFICATION
| Model | Capacity (Kg/Hr) | Power (Kw) | Input Size (mm) | Discharge Size (mm) | Dimension (mm) |
| MX-200 | 40-60 | 2*0.75 | 90*140 | / | |
| MX-300 | 100 | 3 | 170*140 | / | 920×620×1210 |
| MX-600 | 200-300 | 11 | 370*335 | 5-20 | 1300×600×1250 |
| MX-800 | 300-500 | 15 | 585*300 | 5-20 | 1550×700×1300 |
| MX-830 | 500-800 | 22 | 600*385 | 5-40 | 2300×700×1250 |
| MX-1100 | 2000 | 2*22 | 1030*610 | 5-40 | 3060×960×3180 |
MINGXIN RECYCLING design and manufacture various shredders and recycling machines, with custom recycling lines and solutions for processing plastic film, PET bottles, rubber tire, scrap metal, municipal solid waste, medical, chemical and industrial waste, etc.
