MX-300 Portable Hard Disk Shredder adopts special steel and is suitable for shred desktop 3.5 inch ,laptop 2.5 inch and 1.8 inch hard disk , It is the new designed especially for shredding all kind of ...
Description
MX-300 Portable Hard Disk Shredder adopts special steel and is suitable for shred desktop 3.5 inch ,laptop 2.5 inch and 1.8 inch hard disk, It is the new designed especially for shredding all kind of hard disk / hard drive,it`s perfect for office and data destruction.

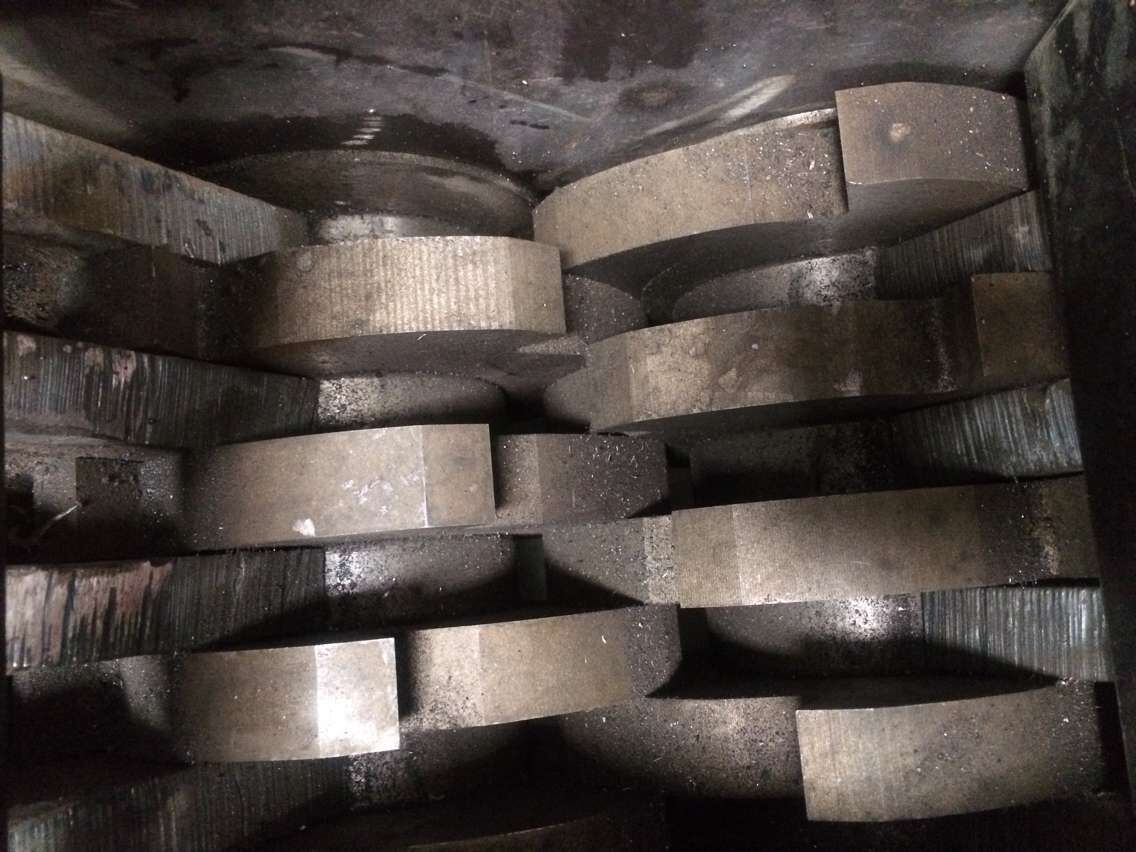

Each rotary knife has 3 cutting edges, you can continue to use it after 90° rotation when it wear. Each stator knife has 3 cutting edges,you can continue to use it after 180° rotation when it wear. The wheel gear reduce drive the main shaft, it has the advantages of stable running lower noise and big torque. PLC control system and positive and negative rotation as well as the emergency stop can ensure the machine working safely and stably.
Details
Model | MX-300 (Old Design) | MX-300 (New Design) |
Rotate speed | 16r/m | 16r/m |
Max. feeding size | 170x140 mm | 170x140 mm |

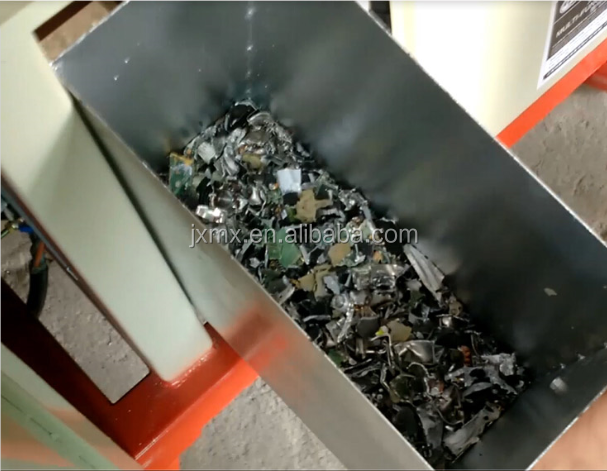

Output size | below 20mm | below 20mm |
Capacity | 40-60 pcs/h | 60-80 pcs/h |
Max stock volume | 20L | 20 L |
Overall size | 860*560* 1005 mm (LxWxH) | 852*552* 1045 mm(LxWxH) |
Blades | 8pcs ￠165*55*20 | 8pcs ￠165*55*20 |
Blades material | H12si | H12si |
Voltage | 220/380/415V, single/ Three phase, 50/60 Hz Optional | |
Motor | 4 kw | |
Weight | 380kg | 390kg |
Color | White / Red/ Black / Gray or Customized | |
Package | Standard Individual Plywood Export Box | |
Advantages | Portable, Multi-functional | Portable, Multi-functional, Touch Panel Control |
Package
