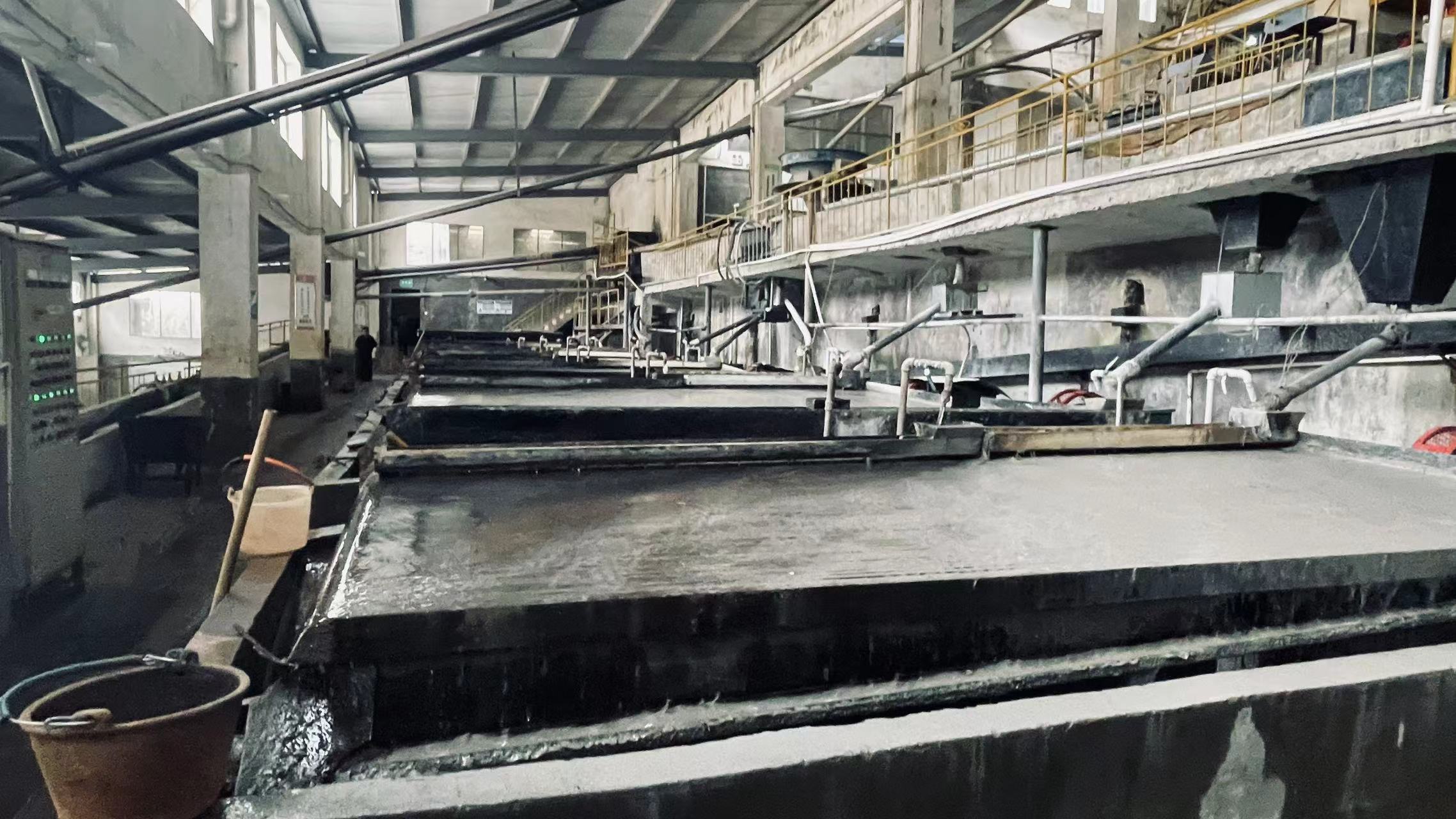

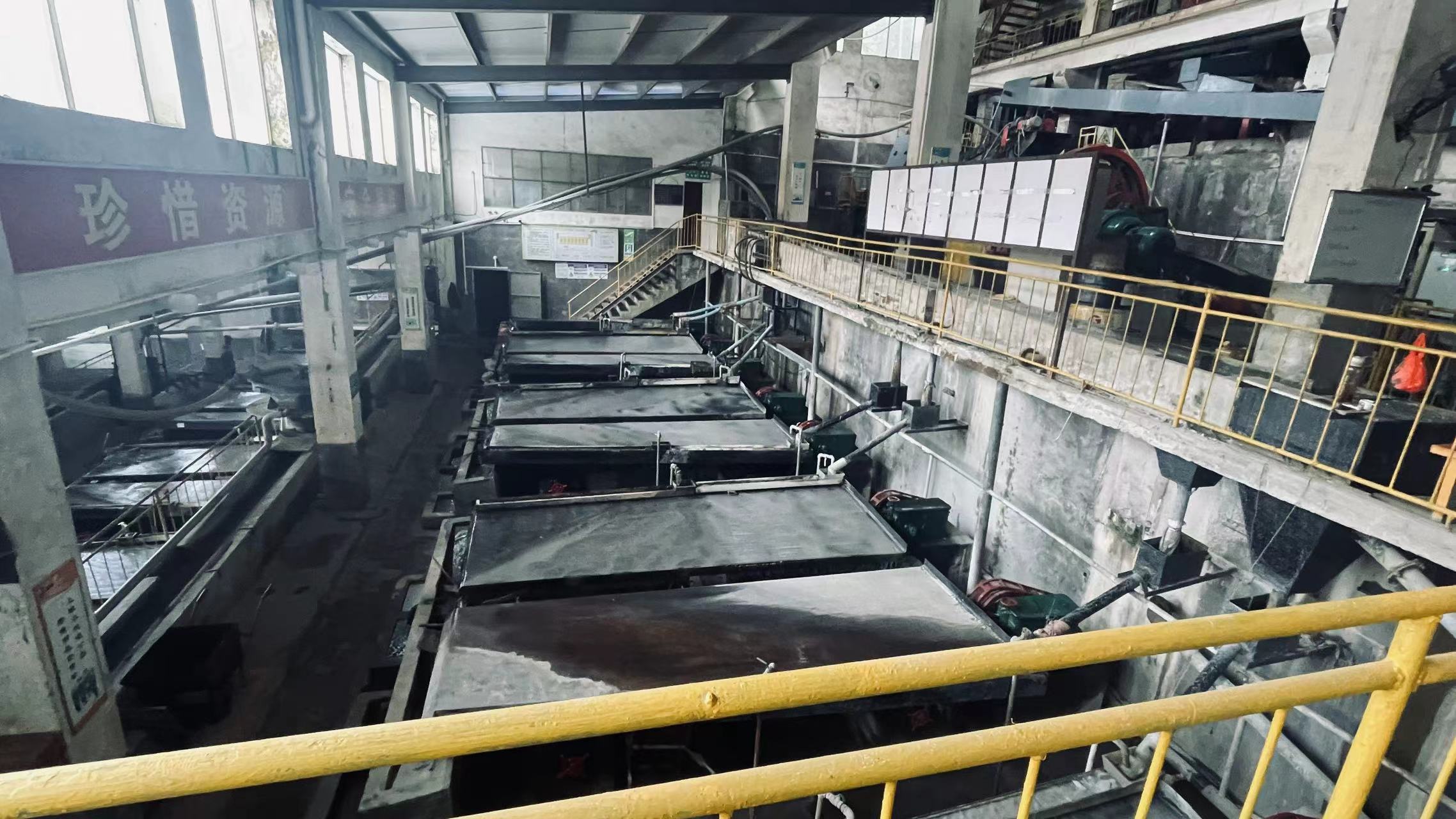

Shaking Table/Shaker Table

Only the densest material climbs the grooves in the ramp, is cleaned, and reports to the high grade discharge. Less dense, higher volume material (as in sulfides in gold ore) forms a band a...

Chat Online on WhatsApp

Consultation

Details

Description

Only The Densest Material Climbs The Grooves In The Ramp, Is Cleaned, And Reports To The High Grade Discharge. Less Dense, Higher Volume Material (As In Sulfides In Gold Ore) Forms A Band At The Base Of The Ramp, Reporting To The Middlings Tray. The Lightest Material Stays Behind And Reports To The Tailings Tray.

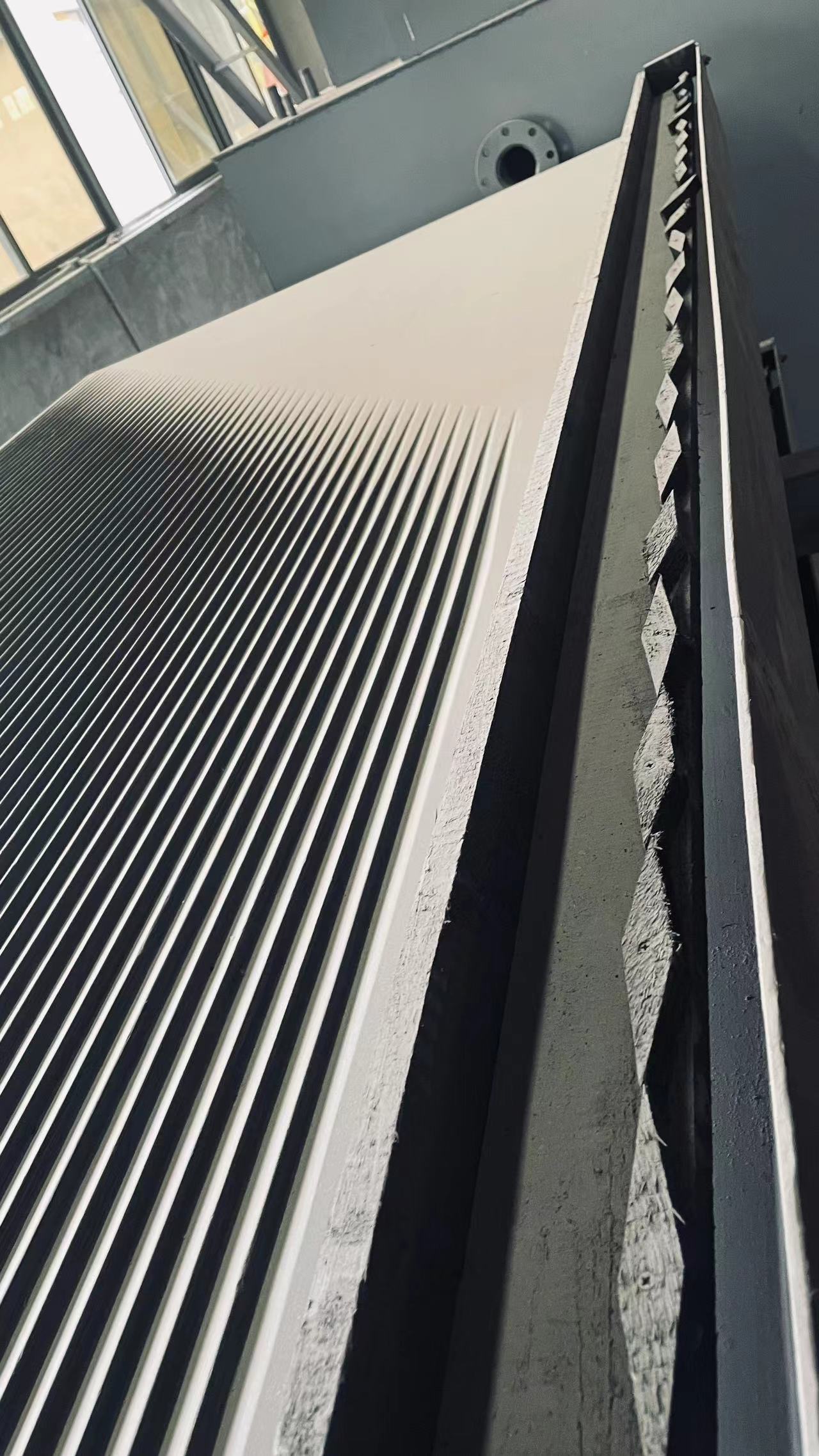

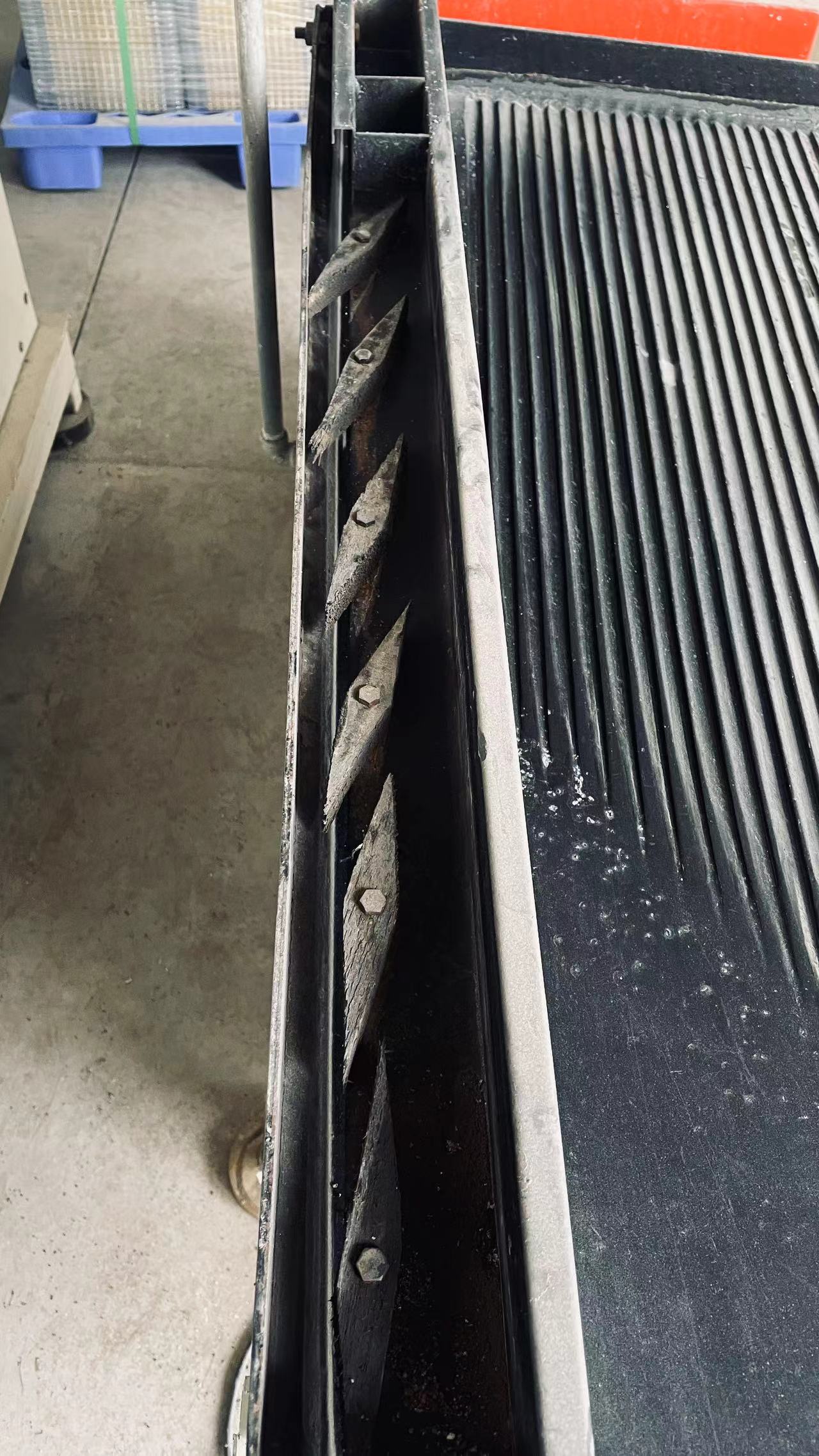

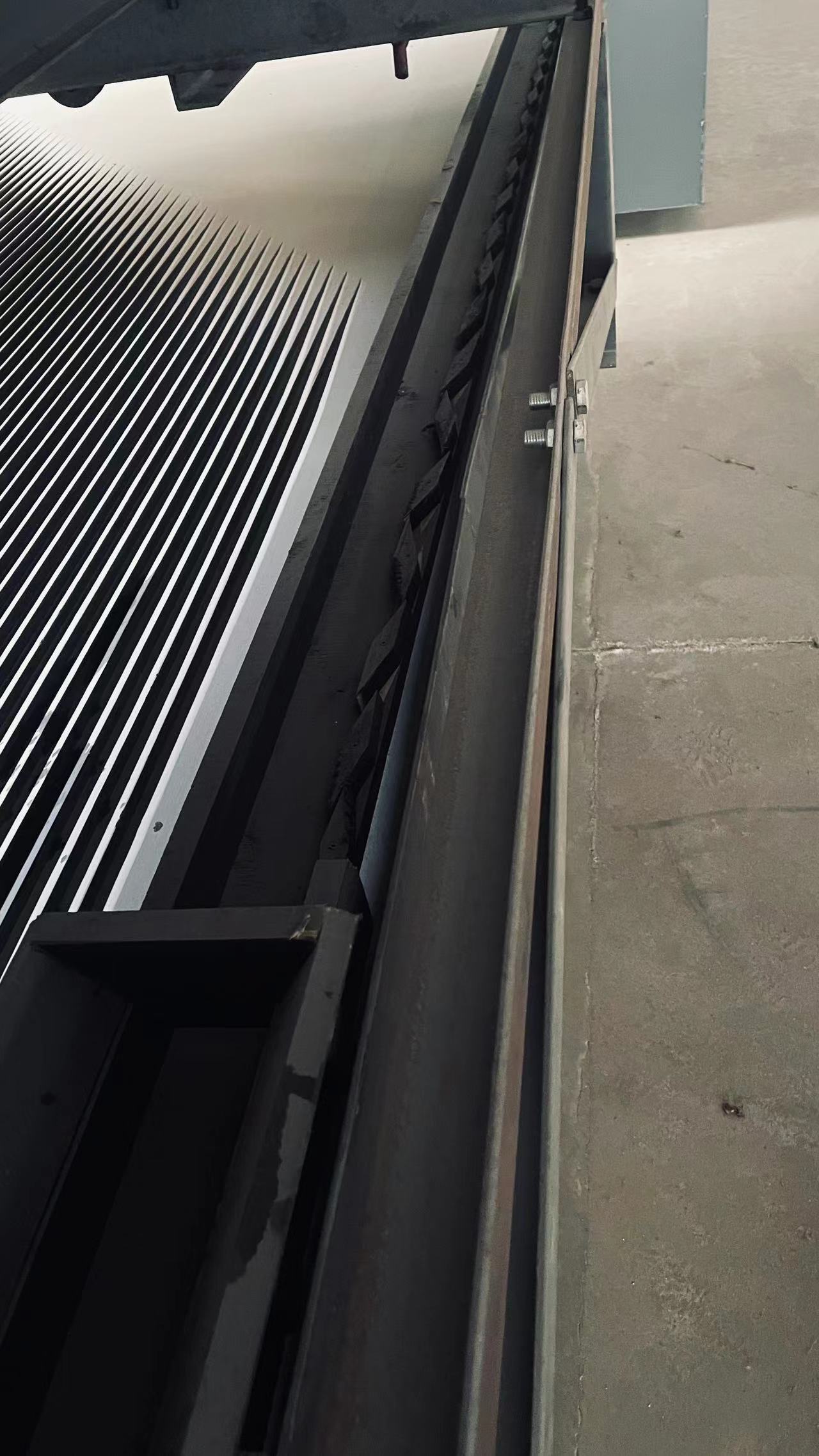

Other Design Features Of The Table Were Added To Minimize Turbulence, Hence Higher Fine Gold Recovery To <325 Mesh. Sloped Grooves Are Machined Into The Wood Top, Replacing High-Turbulence Riffles. There Is A Smooth Back And Forth Motion To Move The Material Across The Table Without Bumps Or Jerks. Adjustable Water Flow Helps Control The Separation Of Various Density Components.

Specification

Model		6S-7.6			6S -4.08	6S -1.95	6S -0.5
Deck Type		Coarse Ore Deck	Fine Sand Deck	Slime/Slurry Deck	Three Different Kinds Of Decks Are Available
Beneficiation Area (㎡）		7.6	7.6	7.6	4.08	1.95	0.5
Deck Size	Length (mm)	4500	4500	4500	3000	2100	1100
	Transmission Width (mm)	1850	1850	1850	1320	1050	500
	Concentrate Width (mm)	1550	1550	1550	1100	850	430
Max. Feeding Size (mm)		2	0.5	0.15	Sand -2 Slime -0.1	Sand -2 Slime -0.074	Sand -2 Slime -0.074
Capacity ( T/ Hour)		1-1.8	0.5-1	0.3-0.5	0.4-1.5	0.3-0.8	0.05-0.2
Feeding Density (%)		25-30	20-25	15-25	10-30
Stroke (mm)		16-22	11-16	8-16	6-30	12-28	9-17
Frequency (r/min)		45-48	48-53	50-57	210-320	250-450	280-460
Water Consumption		80-150 T/Day	30-60 T/Day	10-17 T/Day	0.3-1.5 T/Hour	0.2-1 T/Hour	0.1-0.5 T/Hour
Transverse Slope of Deck		2°30-4°30	1°30-3°30	1°-2°	0-10°	0-8°	0-10°
Longitudinal Slope of Deck		1.4	0.92	/	/	/	/
Groove Shape of Deck		Rectangular	Saw-tooth	Triangle	Rectangular/Saw-tooth/Triangle Available
Motor Power (kw)		1.1	1.1	1.1	1.1	1.1	0.55
