CRT Heated Cutting Machine (Double Station)

Mingxin Electric Heat CRT Cutting system is used to sepeate the glass at panel and glass at rear part called funnel, suck and collect the fluorescent powder. All steps are eco-f...

Chat Online on WhatsApp

Consultation

Details

Description

Cathode Ray Tube, CRT, is one the most important E-Waste in all over world and has became a global environmental problem. TV or a computer monitor's CRT contains toxics lead and phosphor dust dangerous for people and environment. Our CRT monitor cutting and recycling machine can process a broad range of TV or Computer’s monitor size.

The machine can be defined as two major parts;

Full Automatic Cutting Part
Phosphor Vacuum and Cleaning Part

Working Principle

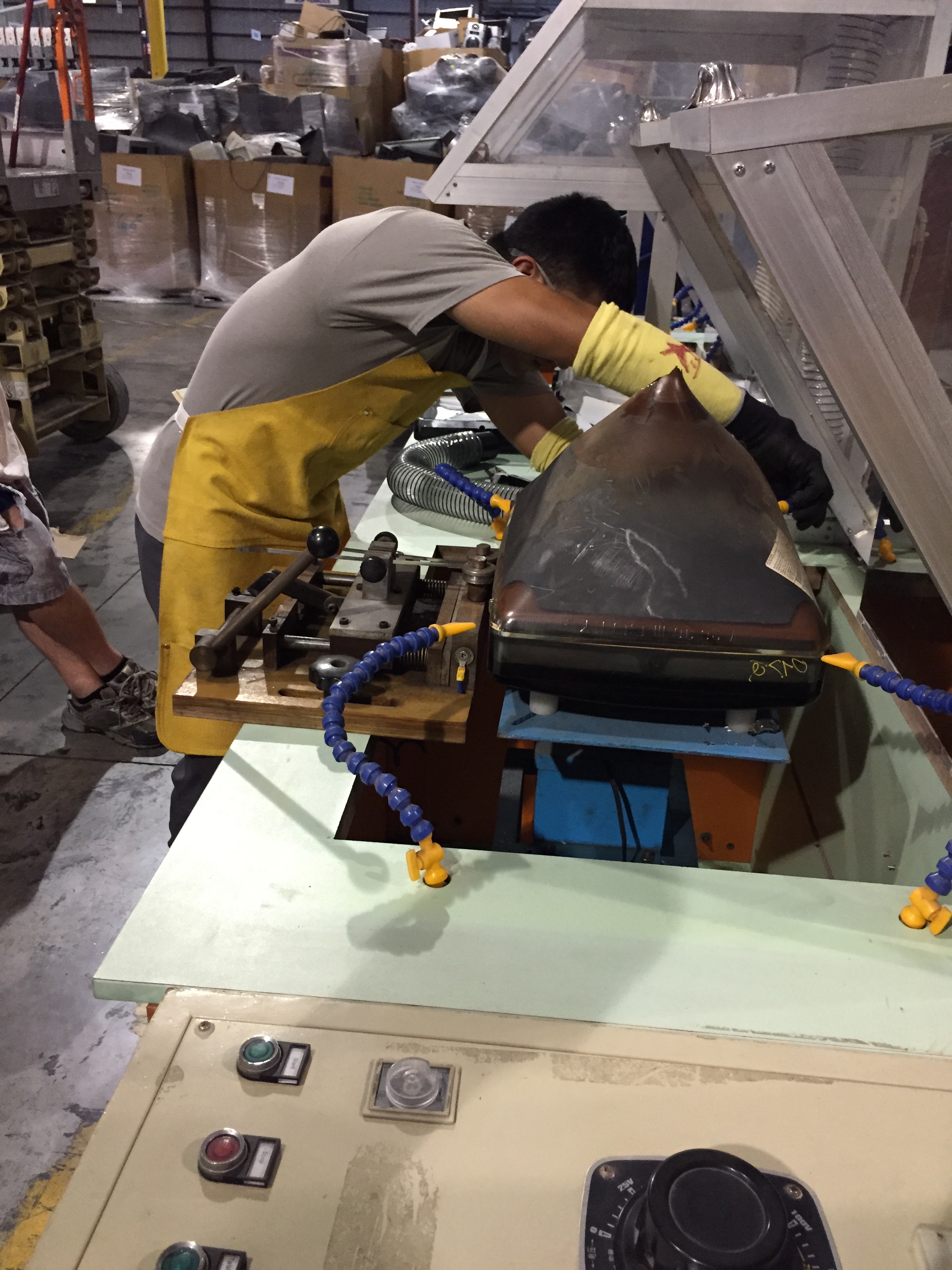

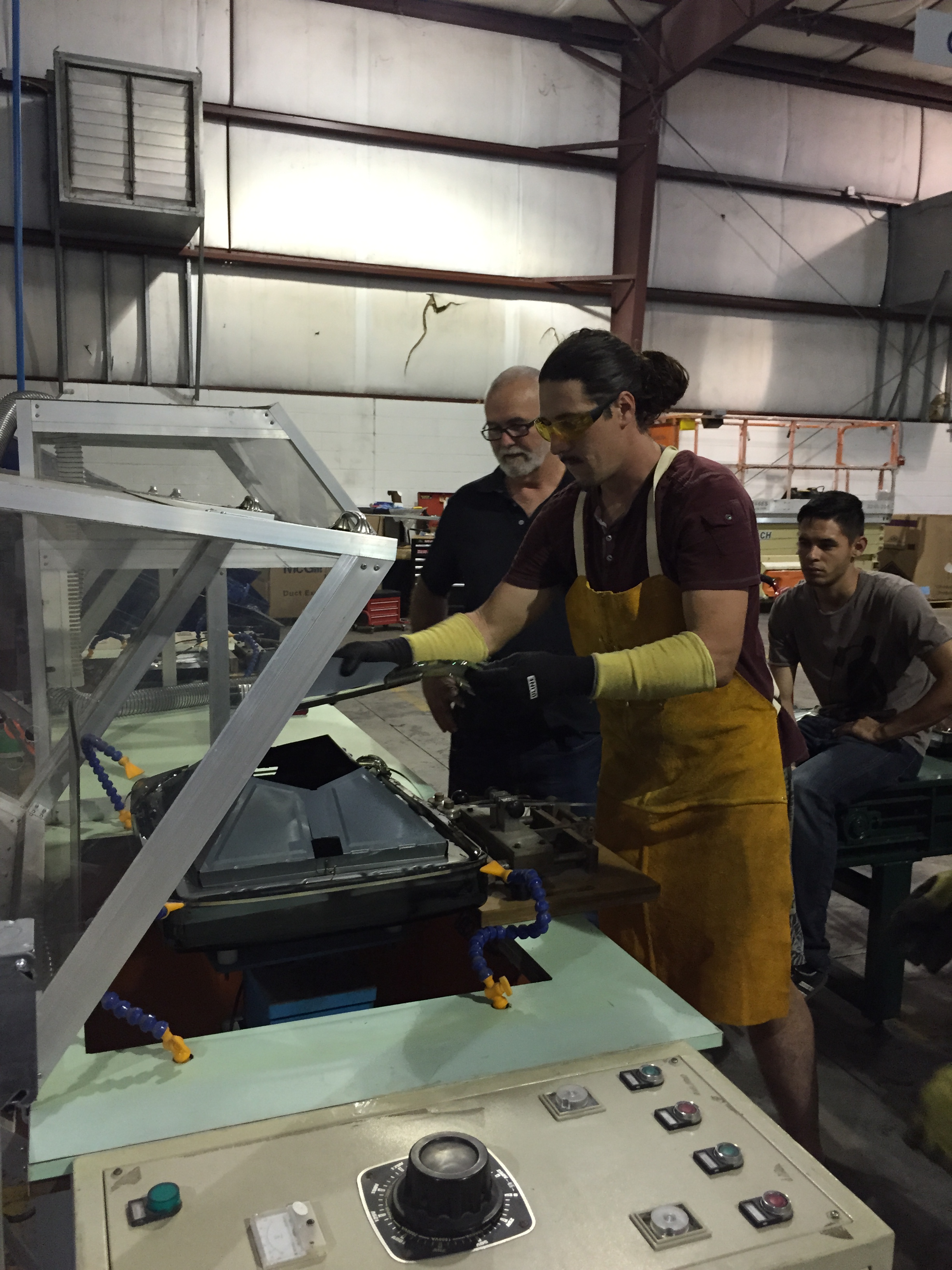

First Encircle the CRT monitor edge by Ni-Chrome Belt
Connect Electric heat tube and Ni-chrome belt. Then turn on electric power.
To cut the edge between panel and funnel by high temperature Ni-Chrome Belt.
Finish cutting And use Cleaner to collect Fluorescent Powder

Specification

Model	Single Station	Double Station
Equipment	1xCRT cutting machine, 1xAir pump, 1x Fluorescent powder collector.	2xCRT cutting machine, 1xAir pump, 1xFluorescent powder collector.
Dimension	1600×750×1750mm	4080x800x1530mm
Treatment TV size	Treatment size: 10”-40”(Changes the length of heater band can cut a bigger size of TV),weight: 7-50kg;dimension: 346x365x365mm, max size: 587x660x868mm
Capacity	40-60 sets/hour	80-100 sets/hour
Fluorescent powder collector	60L-1.8KW->17KPA
Total power	18.3kw	24.5KW
Package	Plywood Case	Plywood Case
Package Case Size	1800X1500X1920cm. 445KG	4100 x1200x1700mm. 628KG

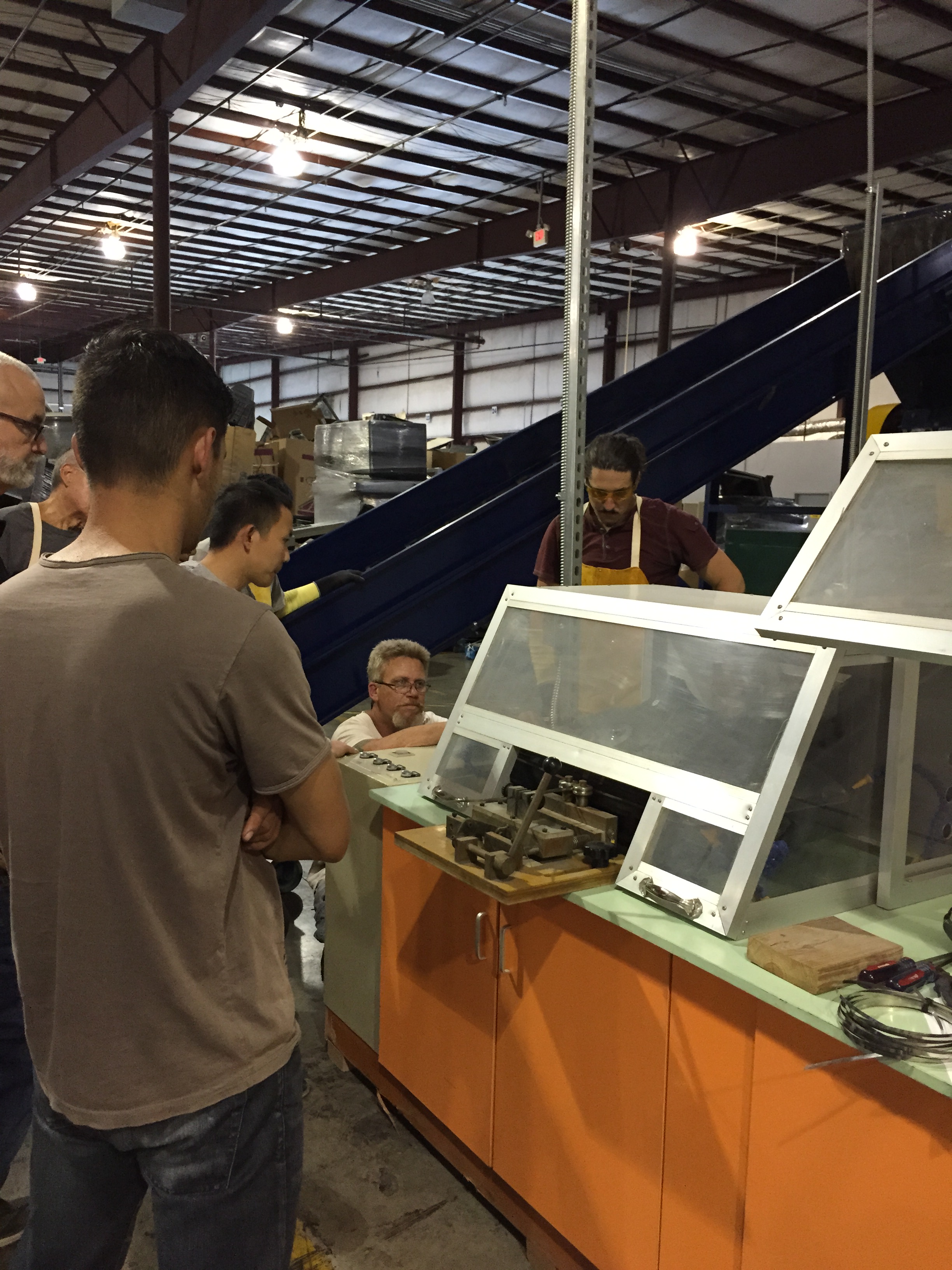

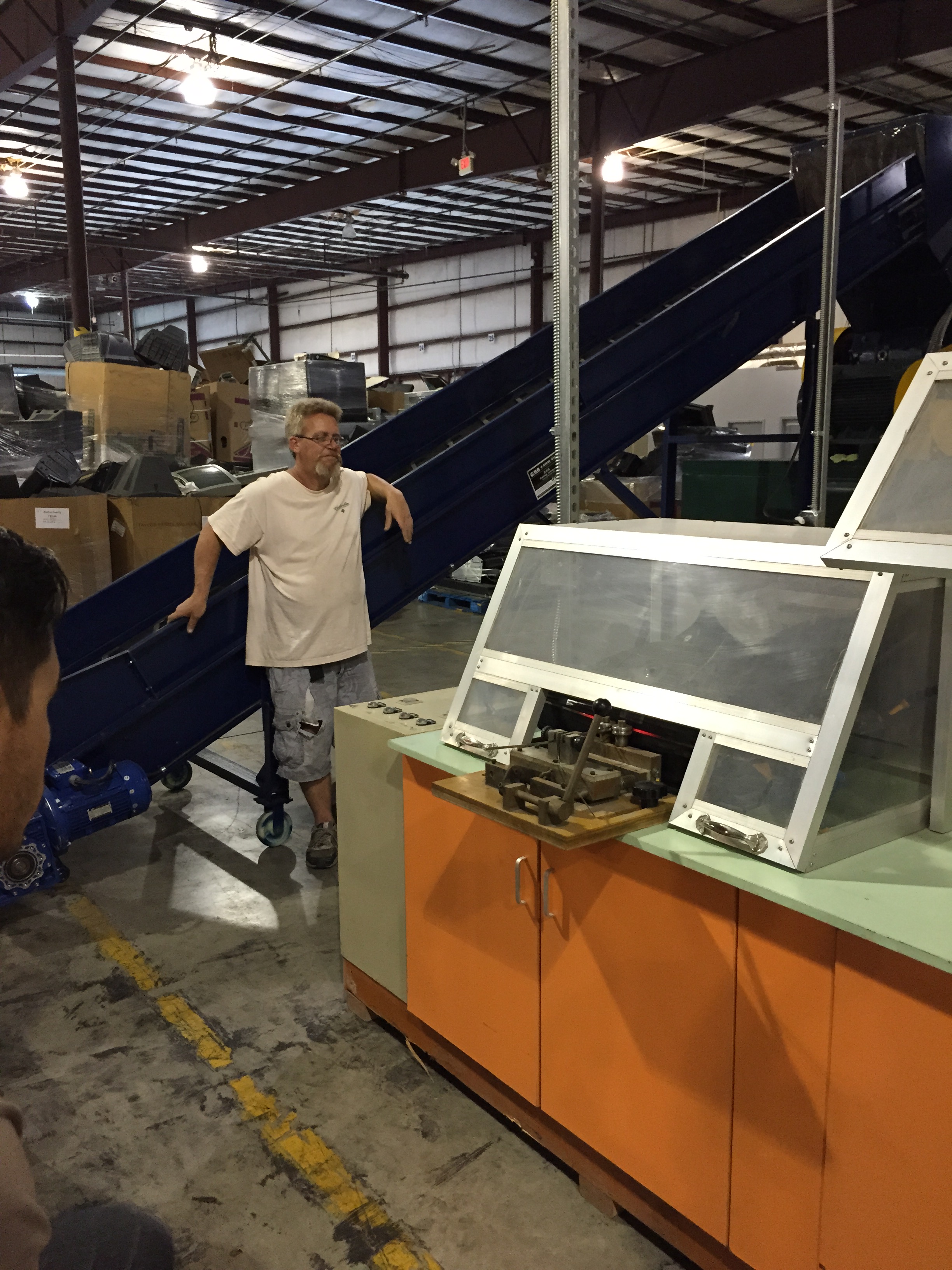

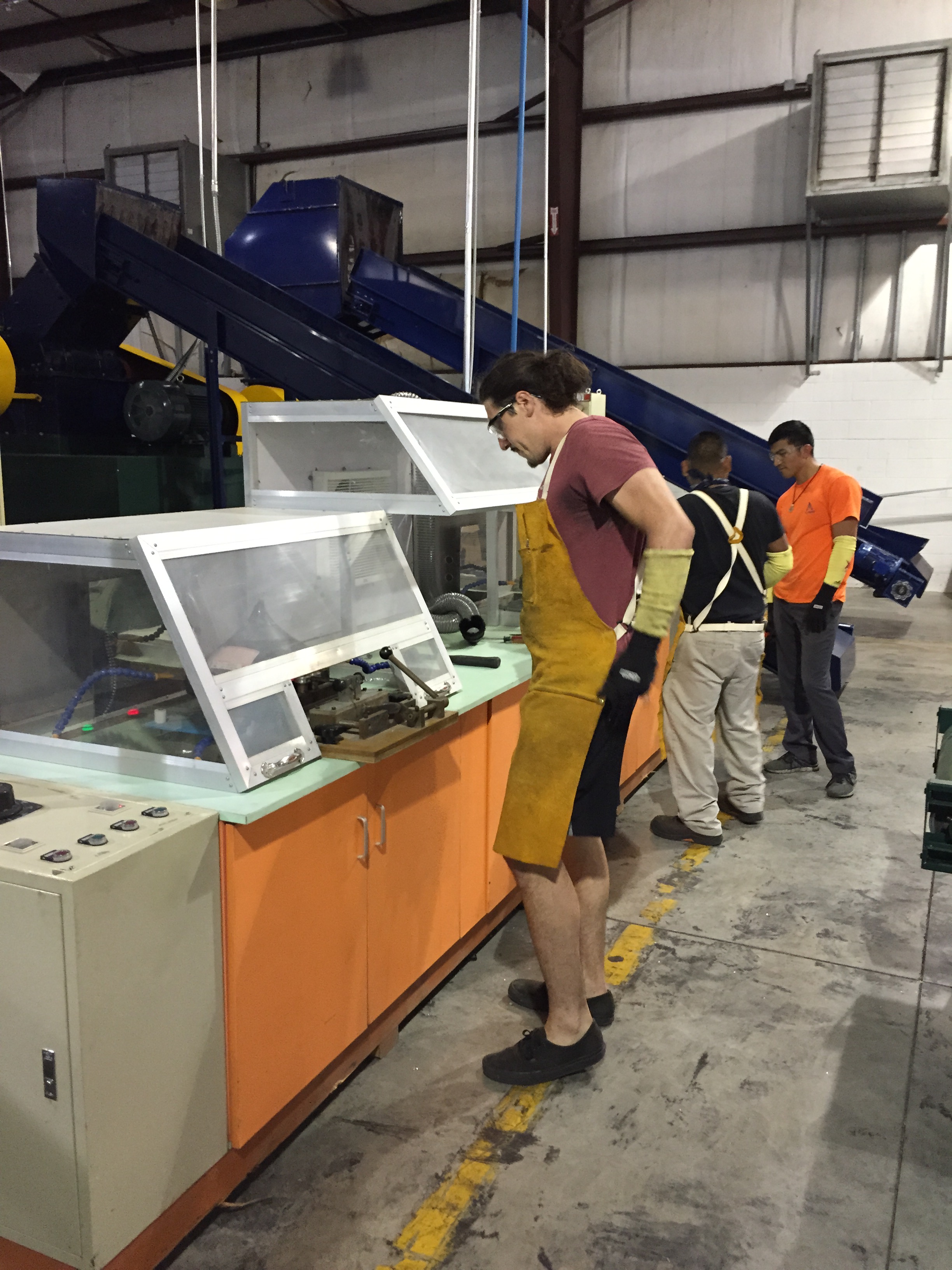

Pictures
