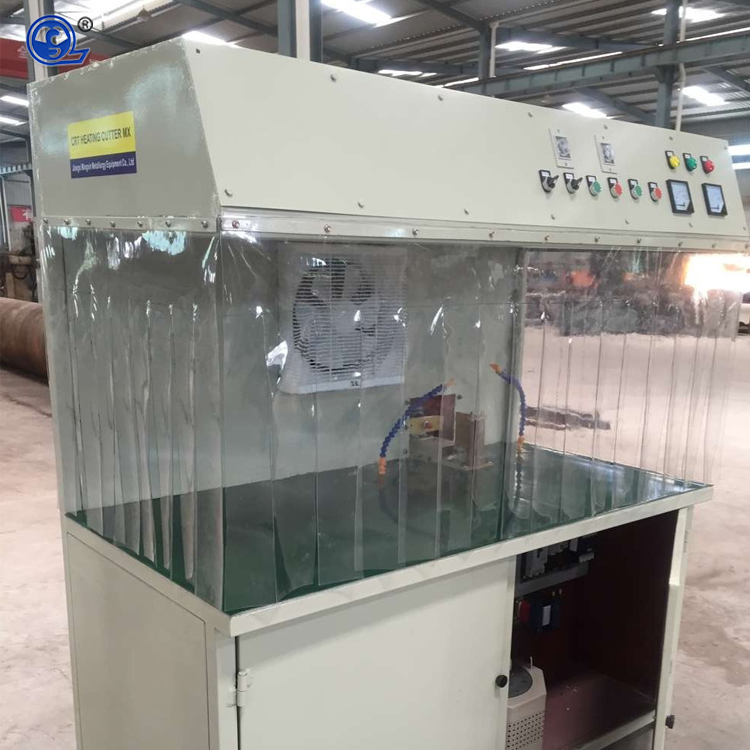

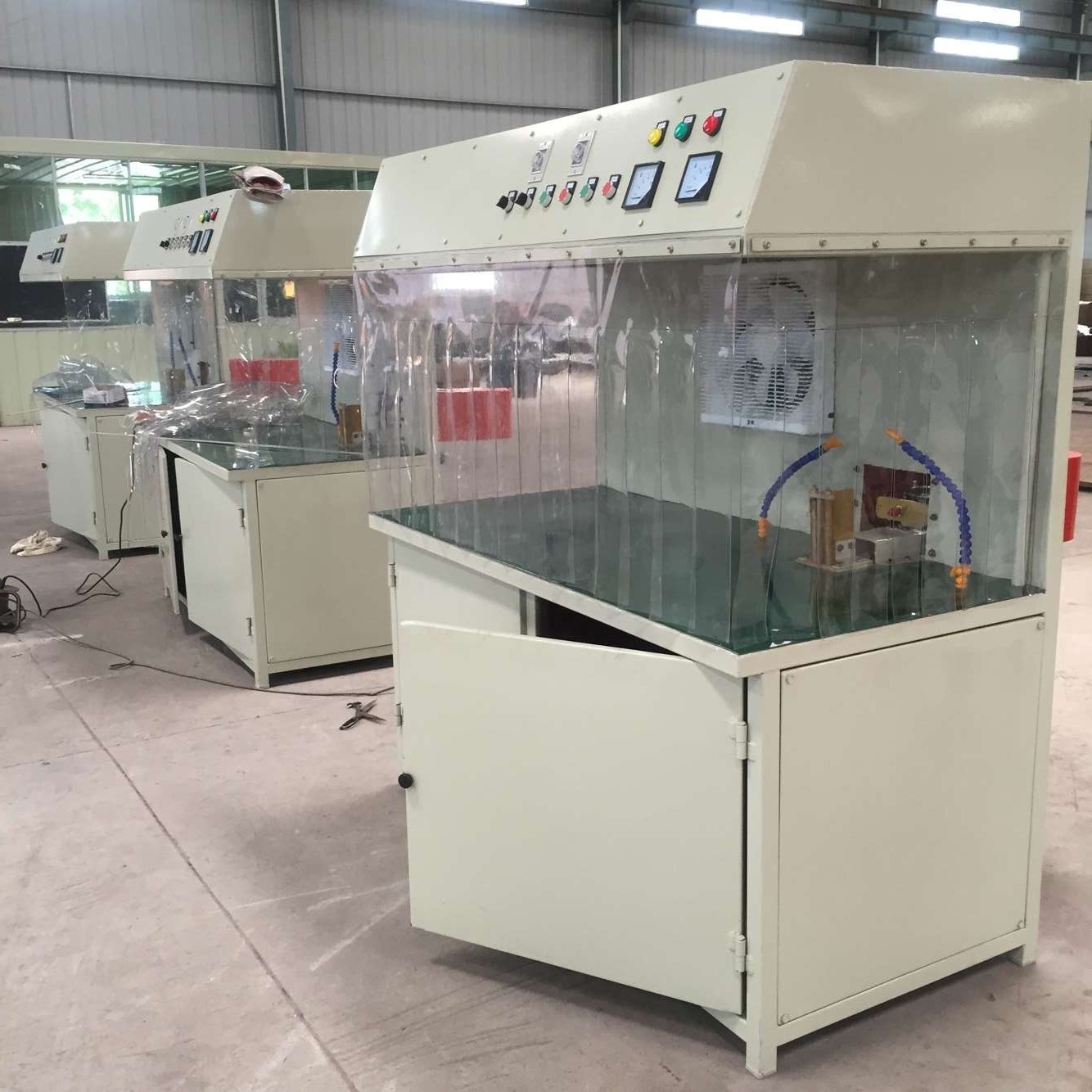

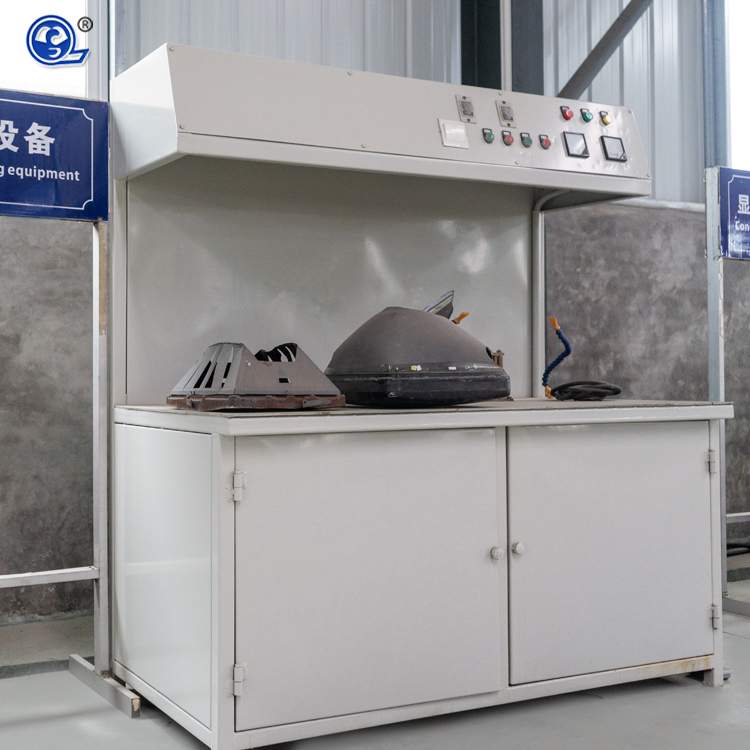

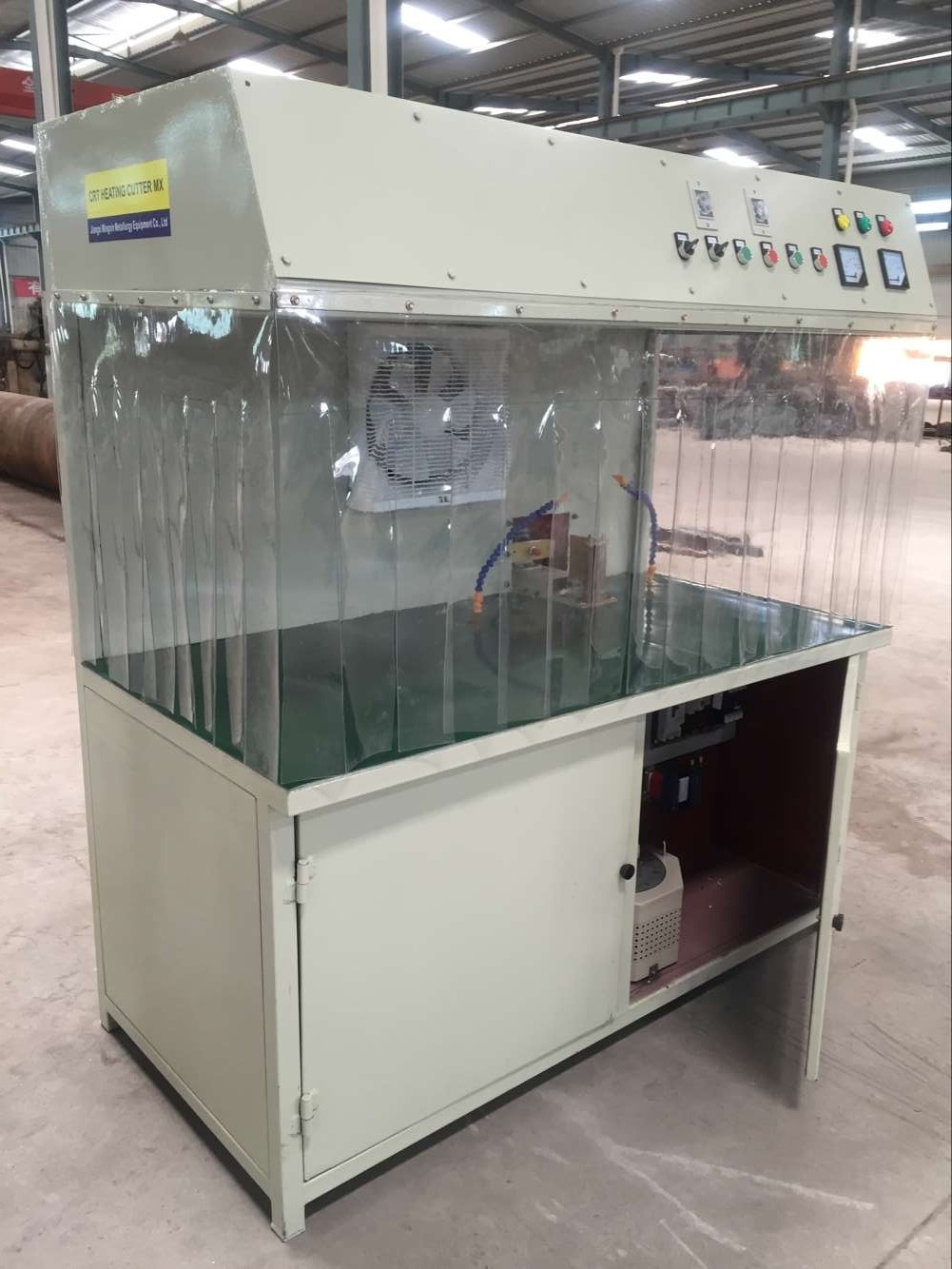

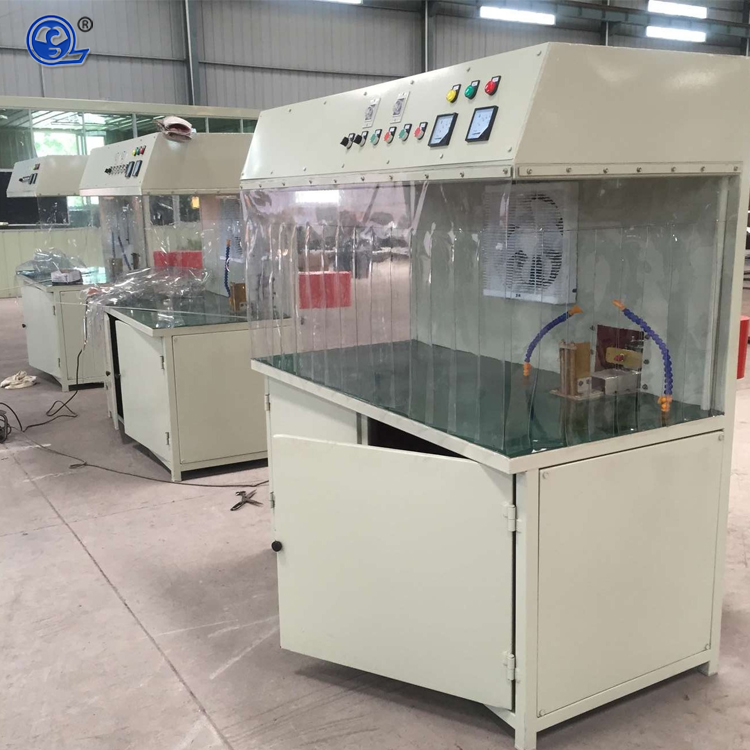

CRT Heated Cutting Machine (Single Station)

using steel wire heating method can efficiently separate the glass panel and funnel, collect internal phosphor to prevent environmental pollution efficiently. Mainly used for waste TV with ...

Chat Online on WhatsApp

Consultation

Details

Description

using steel wire heating method can efficiently separate the glass panel and funnel, collect internal phosphor to prevent environmental pollution efficiently. Mainly used for waste TV with size from 10"to 40"(Changes the length of heater band can cut a bigger size of TV), and waste computer monitors. The capacity reaches 60 pieces per hour.

Technical data

1. Dimension: 1600×750×1750mm

2. Treatment size: 10”-40”(Changes the length of heater band can cut a bigger size of TV) weight: 7-50kg; dimension: 346x365x365mm, max size: 587x660x868mm

3.Capacity: 60 sets/hour

4. Air pump:MXW-0.36/12.5

5.Weight: 300kg

6.Total power: 8.5Kw
